Features
Monitors multiple safety mats connected together to form a safeguarded zone up to a total of 100 m2
Includes auto/manual reset
Offers selectable voltage supply
Provides third-party approval — cULus, TÜV
Includes four-wire system to detect opens and shorts
Specification
Mat Manager Data
Safety Outputs: 2 N.O.
Mat Manager Data
Safety Mat Connectors: Cable Grip
Auxiliary Outputs: 1 N.C.
Reset: Automatic
Inputs: Up to 8, 4 wire Mats with QD Connectors
RemovableTerminals: Lumberg 8 Pin
Housing Width: 225 mm
Power Supply: 24V DC

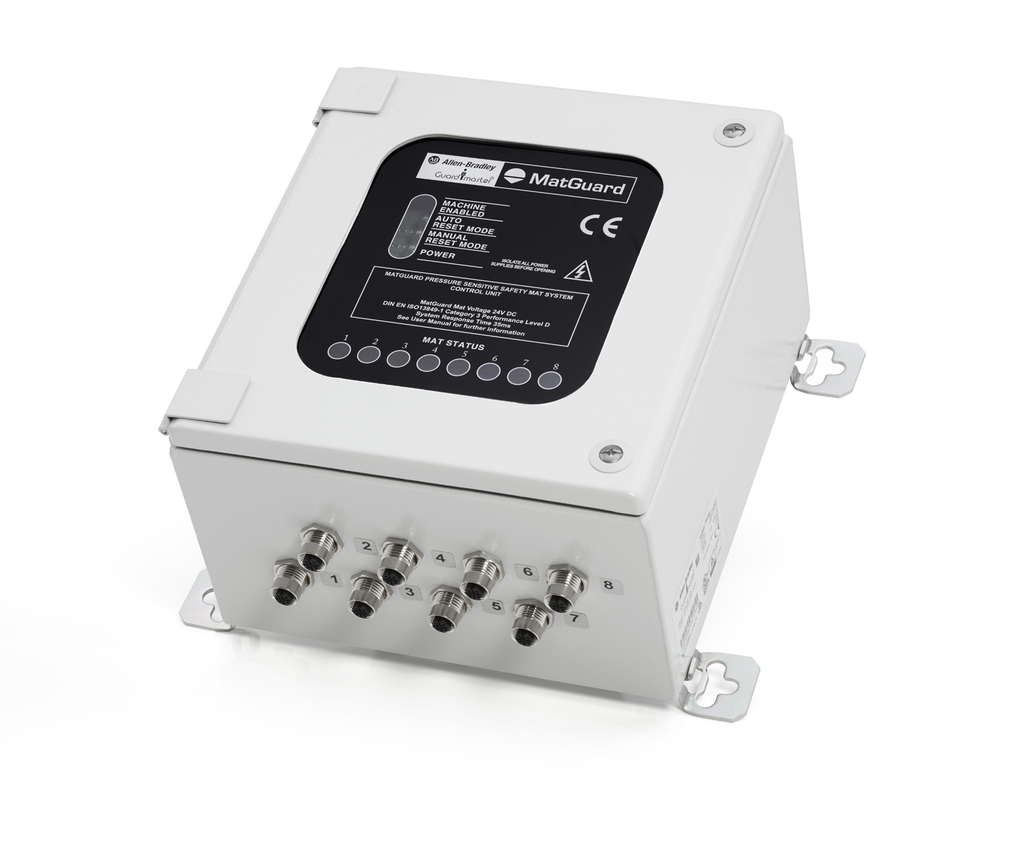

MatGuard™ Mat Manager, 24V DC, Connection: 8 pin M12 qd Connector, Inputs: 8 Cable Grips, 2 N.O. safety outputs, 1 N.C. aux., Reset: Auto, Manual.
