Features
Numerous configurations for power distribution including feed left, feed right, and feed middle
Marked with wire range, tightening torque requirements, and SCCR values
Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
Marked with wire range, tightening torque requirements and SCCR values
Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
IP2X Finger-safe protection
Feeder spacing
Specification
Power Block Data
Openings per Pole (Line Side): 1 Opening
Power Block Data
Current Rating (per Pole): 175 Amps
Rated Wire Range for Line Side: # 2/0 to # 14 Copper wire
Openings per Pole (Load Side): 4 Openings
Marking Strips: Single White Strip Provided
Connector Material: Copper
Number of Poles: 3-Pole
Base Block Type: Copper Connector Block
Rated Wire Range for Load Side: #4 - # 14 Copper wire

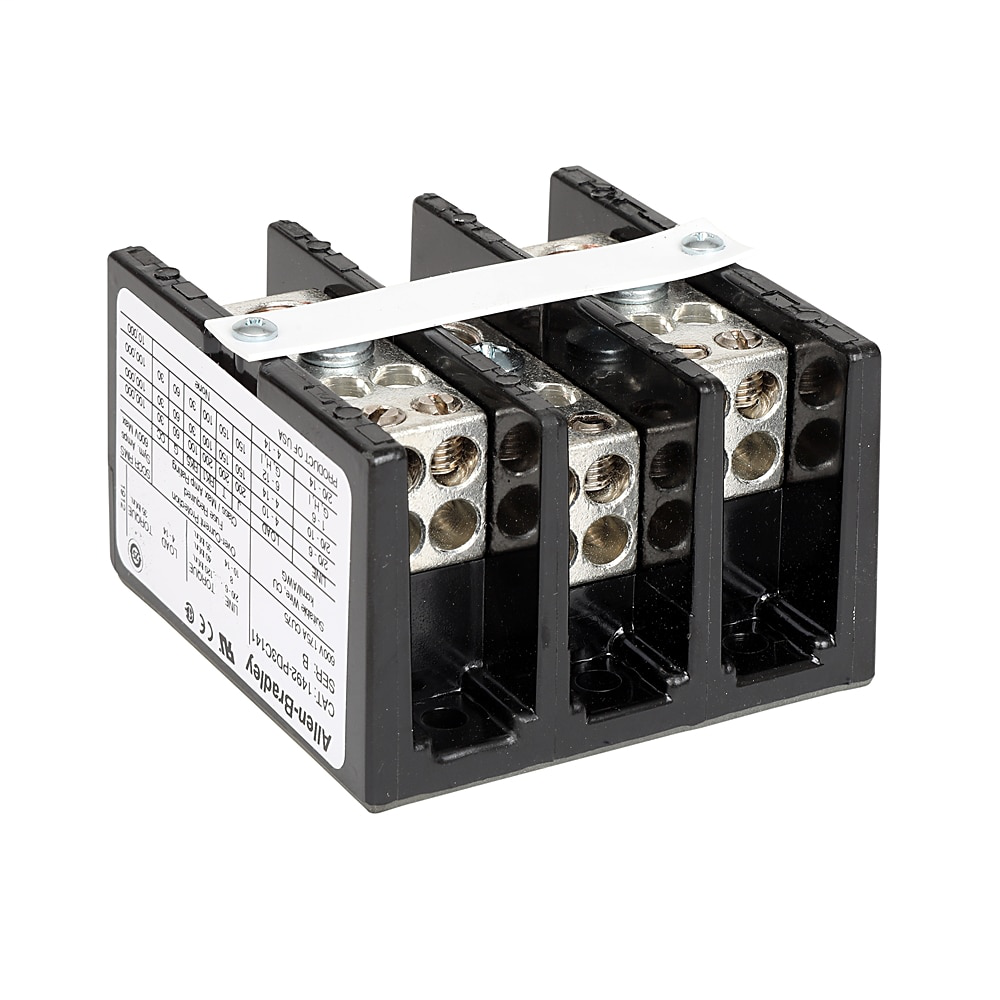

Power Block, Power Distribution Block, 3 pole, Copper Connector Block, 1 Opening Line Side, 4 Opening Load Side, 115 Amps to 175Amps
