Features
Numerous configurations for power distribution including feed left, feed right, and feed middle
Marked with wire range, tightening torque requirements, and SCCR values
Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
Marked with wire range, tightening torque requirements and SCCR values
Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
IP2X Finger-safe protection
Feeder spacing

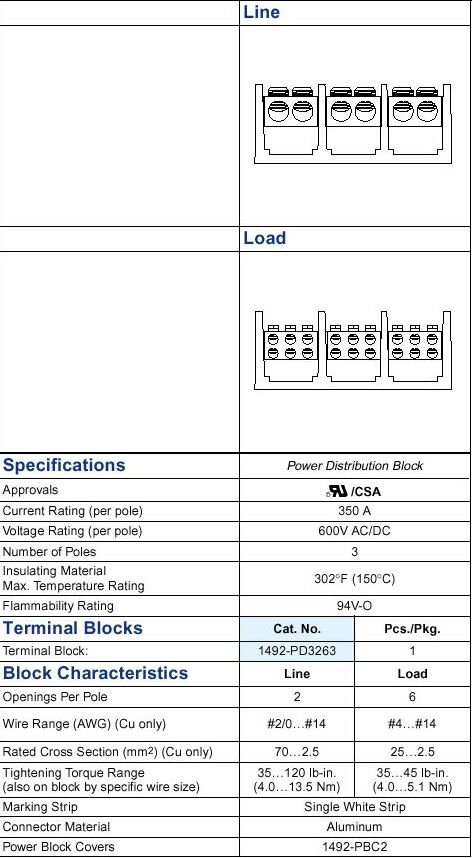

Specification
Power Block Data
Rated Wire Range for Load Side: #4 - # 14 Copper wire
Power Block Data
Openings per Pole (Line Side): 2 Openings
Rated Wire Range for Line Side: # 2/0 to # 14 Copper wire
Current Rating (per Pole): 350 Amps
Marking Strips: Single White Strip Provided
Number of Poles: 3-Pole
Openings per Pole (Load Side): 6 Openings
Connector Material: Aluminum
Base Block Type: Power Distribution Block
Power Block, Power Distribution Block, 3 pole, 2 Opening Line Side, 6 Opening Load Side, 310 Amps to 380 Amps
