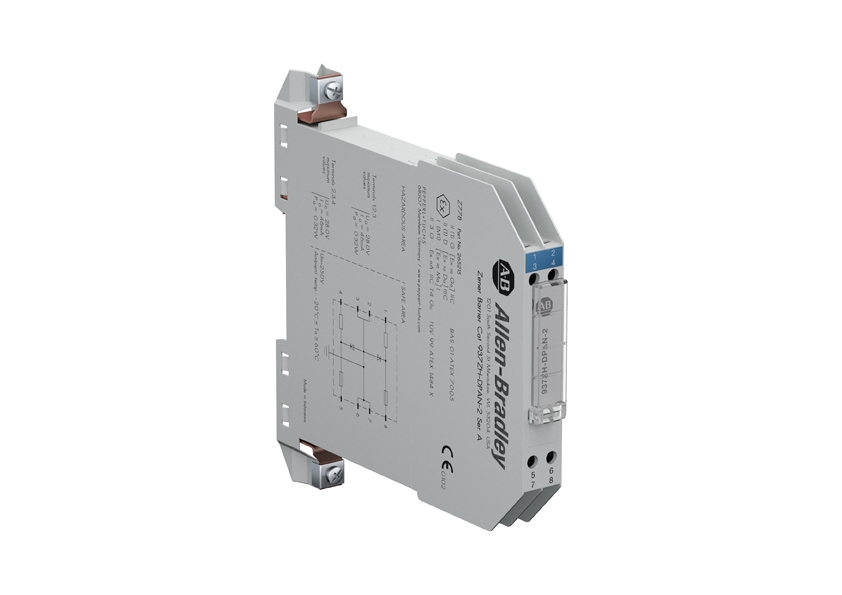

Intrinsic Safety Zener Barrier, Positive Polarity DC, Max SeriesResistance 646 Ohm, 2-Channel, 12.5 mm

Catalog Number: 937ZH-DPAN-2
UPC: 887172345210

要求
报价

羅克韋爾自動化®為您提供的Allen-Bradley產品系列提高了生產率和靈活性。 Allen-Bradley的產品組合是創新和質量領域的領導者，擁有超過110年的經驗，提供優化性能所需的自動化組件和集成控制系統。

Includes standard DIN rail snap on mounting for easy installation and grounding

Uses Zener diodes to limit electrical energy in hazardous environments

Offers a high power version with a smaller serial resistance which provides higher voltage to the field device

Provides diode return feature to prevent a current into the hazardous area

Module Profile: 12.5mm Module (High Density)

Channels: Dual Channel
Type: DC Positive Polarity
Features: None
Max. Series Resistance: 646 ohms

Intrinsic Safety Zener Barrier, Positive Polarity DC, Max SeriesResistance 646 Ohm, 2-Channel, 12.5 mm

937 Selection Guide

937Z STP File

937Z 2D Drawing File

937Z Photo
