Numerous configurations for power distribution including feed left, feed right, and feed middle
Marked with wire range, tightening torque requirements, and SCCR values
Feed terminal block is rated for wires with cross sections from 4…14 AWG and up to 16 mm^2
Marked with wire range, tightening torque requirements and SCCR values
Power distribution from a feed terminal block to any number of terminal blocks with smaller cross sections
IP2X Finger-safe protection
Feeder spacing
规格
Power Block Data
Marking Strips: Not Provided
Power Block Data
Current Rating (per Pole): 335 Amps
Number of Poles: 3-Pole
Openings per Pole (Load Side): 12 Openings
Openings per Pole (Line Side): 1 Opening
Base Block Type: Feeder Spacing Power Distribution Block
Rated Wire Range for Load Side: #4 - # 8 Copper wire
Rated Wire Range for Line Side: 600 kcmil - # 3 Copper wire

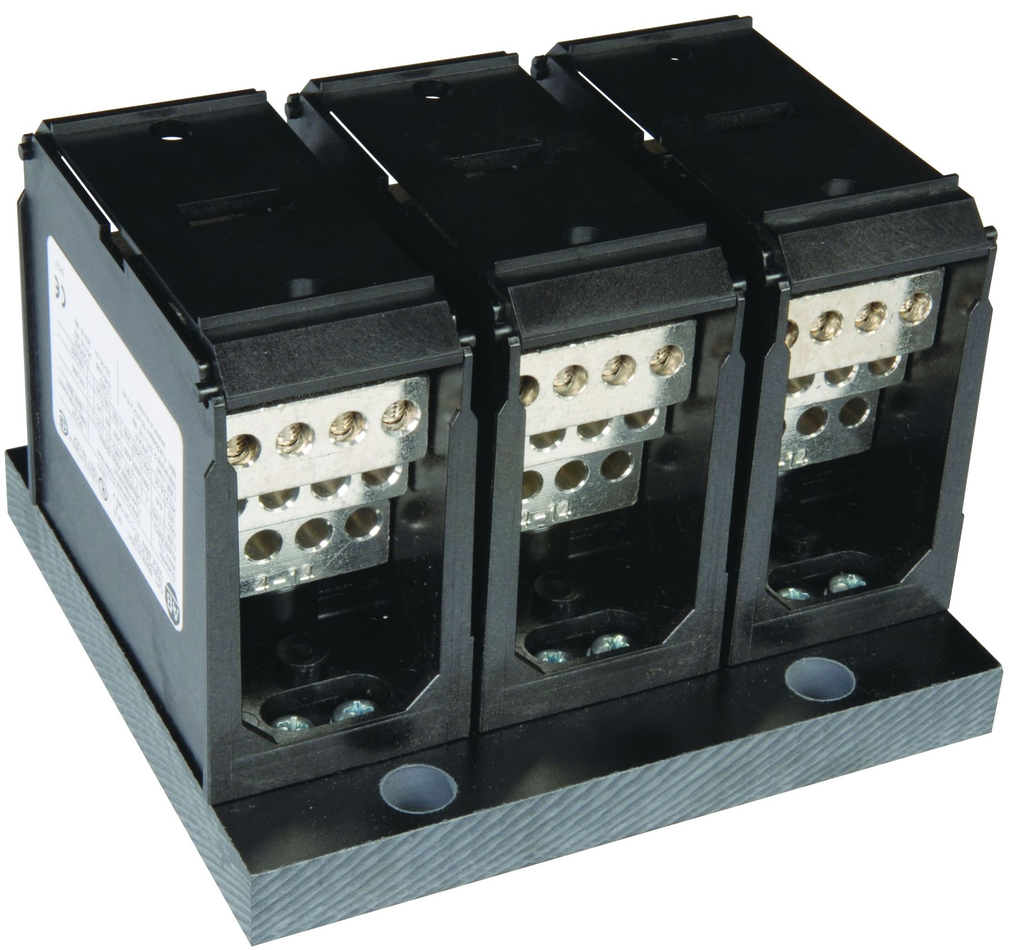

我们的 Bulletin 1492 高可靠性 SCCR 电源端子块带有馈线间距，提供很多连接器配置。这些端子块带有铰接盖，更便于操作和更好地防止意外接触。
