人物
Provides greater customization in trip units
Offers a wide range of accessories for global availability
Offers a wide range of operating mechanisms to fit a variety of panel configurations
Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
规格
Interrupting Rating, 50/60 Hz, 600V DC (kA): 50
Breaking Capacity, 50/60 Hz, 415V (kA): 100

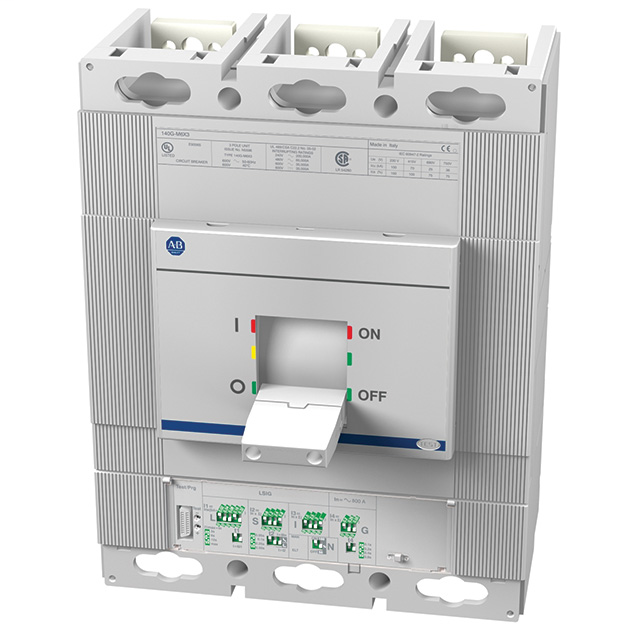

Bulletin Number: 140G - Molded Case Circuit Breaker
Breaking Capacity, 50/60 Hz, 690V (kA): 30
Interrupting Rating, 50/60 Hz, 600V (kA): 42
Interrupting Rating, 50/60 Hz, 240V (kA): 200
Frame/Rating: M Frame (800 A)
Interrupting Rating, 50/60 Hz, 480V (kA): 100
Breaking Capacity, 50/60 Hz, 220V (kA): 200
Manufacturing
Assembly: Factory Assembled
Circuit Breaker Data
Rated Current(A): 600 A
Current Range: 80% Rated
Device Type: 140G - Molded Case Circuit Breaker
Number of Poles: 3 Poles
Frame Size: M frame
Protection: LSIG (electronic)
模压外壳 断路器 , 800a m框架, 100 ka, 480v, eleclsig -lg＆shtm, hghinst, gfit, 3极, 600a, 80％mccb, 无母线安装, 无, 无, 无, 无
