Provides greater customization in trip units
Offers a wide range of accessories for global availability
Offers a wide range of operating mechanisms to fit a variety of panel configurations
Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
规格
Interrupting Rating, 50/60 Hz, 500V DC (kA): 50
Interrupting Rating, 50/60 Hz, 480V (kA): 65
Interrupting Rating, 50/60 Hz, 600V (kA): 35
Breaking Capacity, 50/60 Hz, 415V (kA): 70
Breaking Capacity, 50/60 Hz, 690V (kA): 40
Breaking Capacity, 50/60 Hz, 440V (kA): 65
Frame/Rating: K Frame (400 A)
Interrupting Rating, 50/60 Hz, 600V DC (kA): 35
Breaking Capacity, 50/60 Hz, 220V (kA): 100
Interrupting Rating, 50/60 Hz, 240V (kA): 150

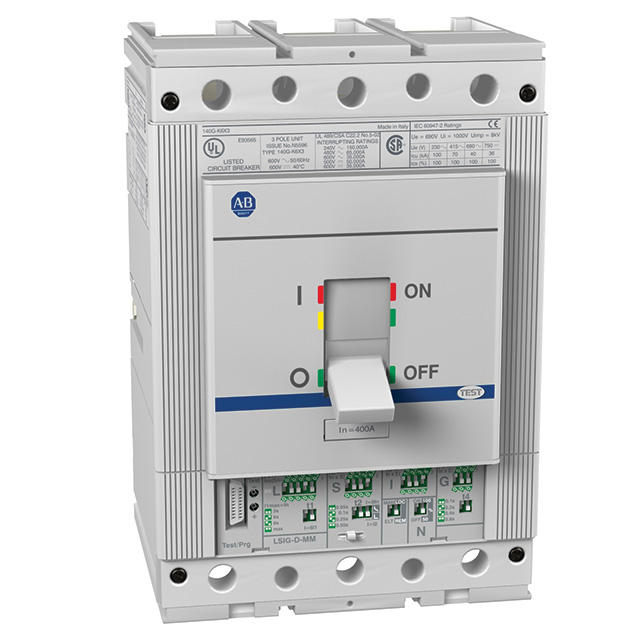

Bulletin Number: 140G - Molded Case Circuit Breaker
Manufacturing
Assembly: Factory Assembled
Circuit Breaker Data
Protection: LSIG-M (electronic)
Current Range: 80% Rated
Frame Size: K frame
Rated Current(A): 300 A
Device Type: 140G - Molded Case Circuit Breaker
Number of Poles: 3 Poles
模压外壳 断路器 , 400a k框架, 65 ka, 480v, 电子模式, 3极, 300a, 80％mccb, 无母线安装, 无, 无, 无, 无
