Provides greater customization in trip units
Offers a wide range of accessories for global availability
Offers a wide range of operating mechanisms to fit a variety of panel configurations
Approved for global application: UL, CSA, CCC, and IEC performance interrupting/breaking capacity
规格
Breaking Capacity, 50/60 Hz, 690V (kA): 10
Breaking Capacity, 50/60 Hz, 415V (kA): 70
Breaking Capacity, 50/60 Hz, 220V (kA): 100
Frame/Rating: G Frame (125 A)
Breaking Capacity, 50/60 Hz, 440V (kA): 65
Interrupting Rating, 50/60 Hz, 600V (kA): 25
Interrupting Rating, 50/60 Hz, 480V (kA): 65
Interrupting Rating, 50/60 Hz, 240V (kA): 100

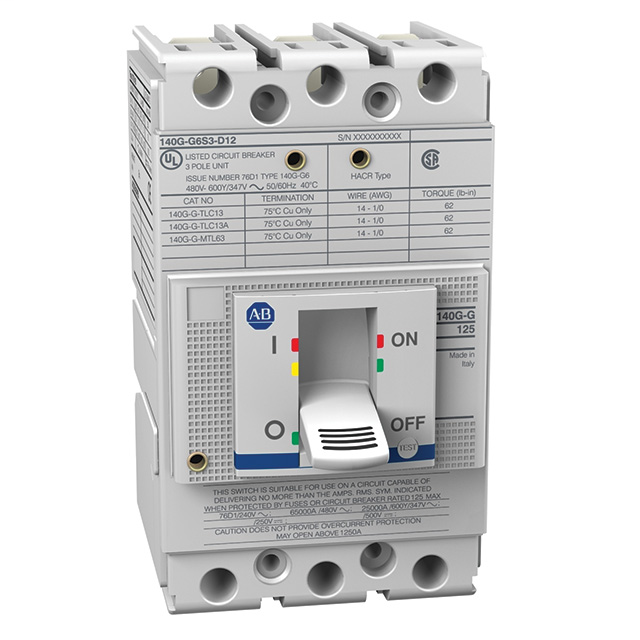

Bulletin Number: 140G - Molded Case Switch
Manufacturing
Assembly: Factory Assembled
Circuit Breaker Data
Frame Size: G frame
Rated Current(A): 125 A
Protection: Molded Case Switch (Isolator)
Device Type: 140G - Molded Case Switch
Number of Poles: 3 Poles
Molded Case Circuit Breaker, G frame, 65 kA at 480V, , Rated Current
